Hyundai DHY6000SE 5.2kW/6.5kVA Silenced Standby Diesel Generator

Highlights:

• Produces 5.2kW / 6.5kVA maximum output

• Electric start with ATS compatibility

• Efficient Hyundai D420 engine

• Equipped with a large 13L fuel tank for a long-running time

• Comes fitted with safety features such as low oil alert and automatic engine shut down

• Low noise sound attenuated canopy

• 1 year / 1,000 hour Hyundai warranty*

• Full UK parts and service operation



Technical Specification:

• Model - DHY6000SE
• Rated/Prime kVA* - 5.6
• Rated/Prime kW - 4.5
• Max/Standby kVA* - 6
• Max/Standby kW - 5.2
• Phase - Single
• Voltage - 115 / 230

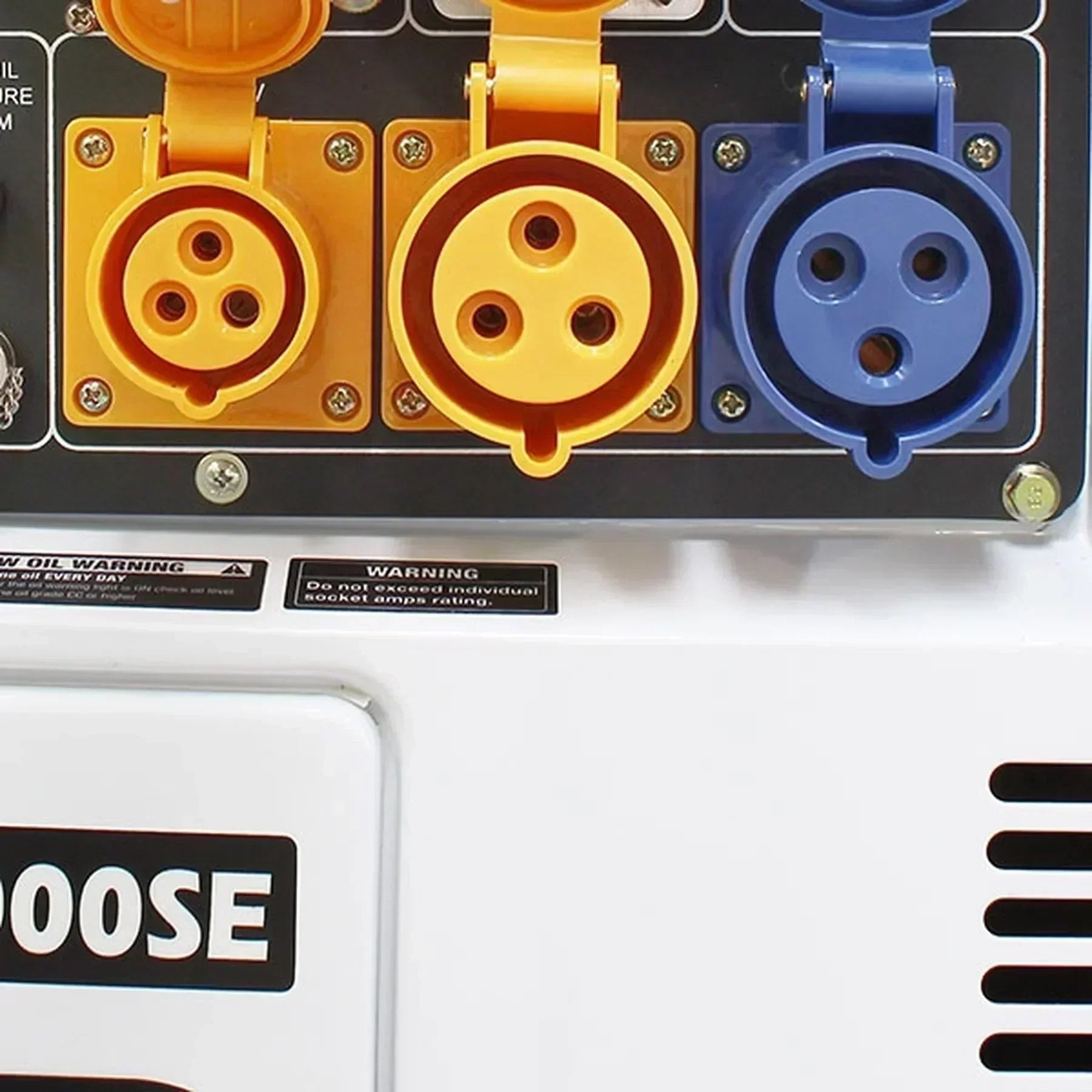

• Connection Method(s) - Sockets - 1 x 115V/16A, 1 x 115V/32A, 1 x 230V/32A
• Rated Speed (RPM) - 3000
• Frequency (Hz) - 50
• Max/Continuous Current (Amps) - 22.6/19.5
• Power Factor (Cosφ) - 1
• Fuel Type - Diesel
• Fuel Tank (Litres) - 13
• Runtime (Hours) @ 100% Load - 9.03
• Noise Level @ 1m 75% load (dB) - 96
• Noise Level @ 7m 75% load (dB) - 70
• Hyundai Diesel Engine Model - D400E
• Power Output (hp) - 7.8
• Engine Displacement (CC) - 418
• No. of Cylinders - 1
• Displacement (Litres) - 0.418
• Recommended Oil Type - 15w40 / 10w40
• Oil Capacity (Litres) - 1.65
• Oil Filter Part No. - D400-B9+D400-B8
• Aspiration - Natural
• Fuel Regulation/Governor System - Mechanical
• Fuel Consumption (100% Load) [Litres] - 1.44
• Fuel Filter Part No. - D400-R05
• Cooling Forced - Air-Cooled
• Alternator Model - D400-SO1-4
• Breakers - 1P 28A 1P 19A 1P 13A
• Alternator Type - Brushed
• Voltage Regulation - AVR
• Air Filter Part No. - D400-I4
• Net Weight (kg) - 152
• Gross Weight (kg) - 158
• Wheel Kit? - Yes
• Dimensions L x W x H (mm) - 930 x 530 x 720

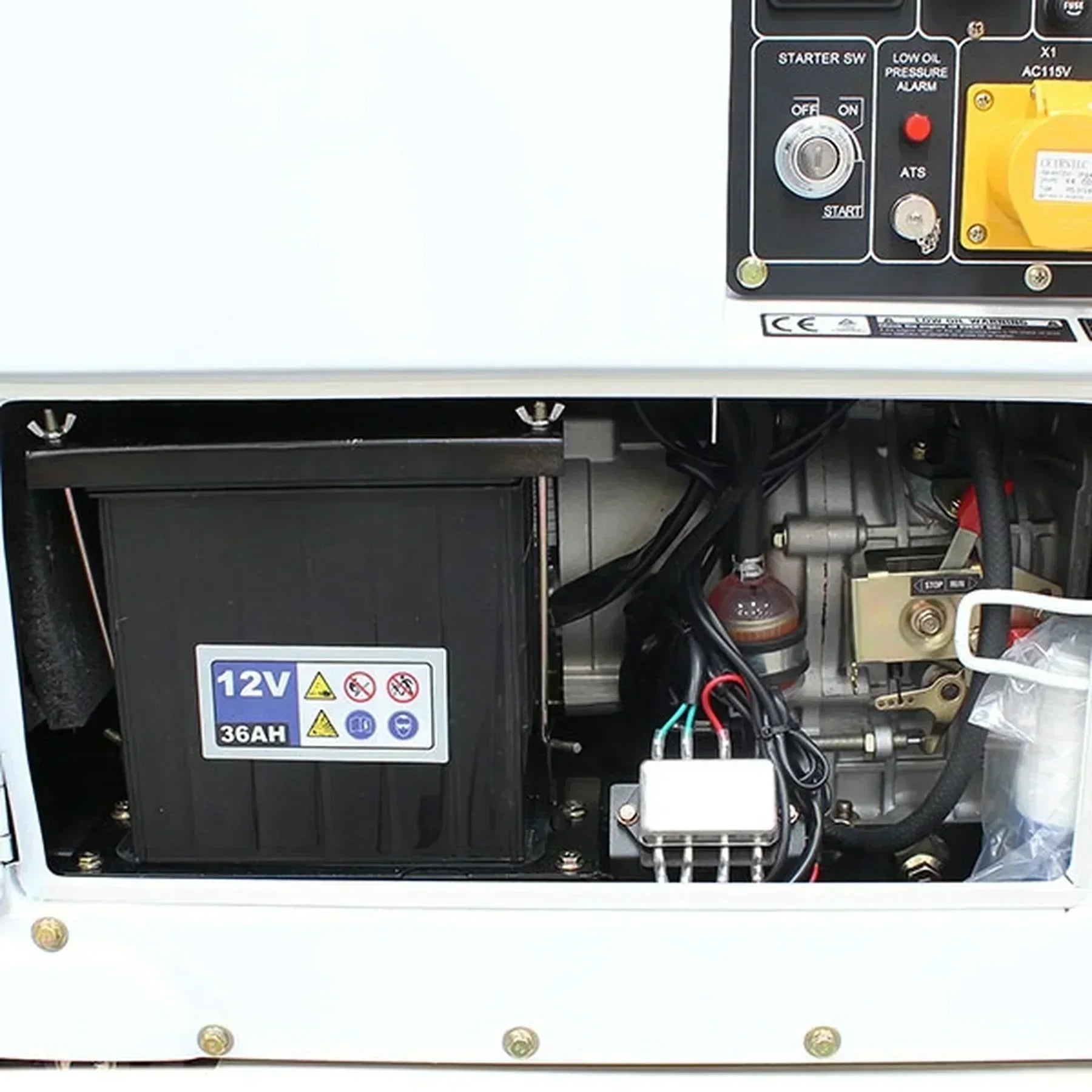

• Battery (Ah) - 12v 36a/h
• ATS / MTS Compatible - Yes

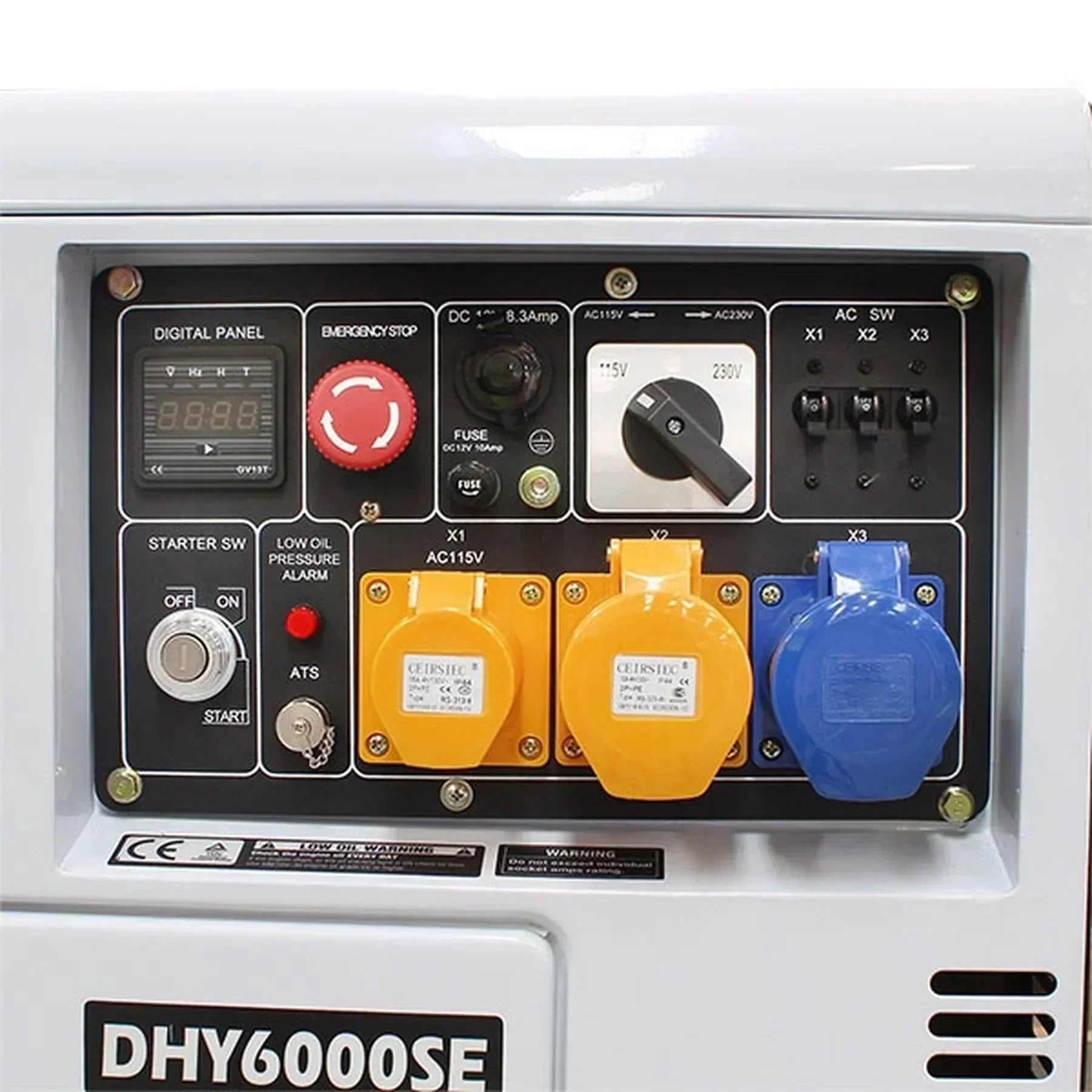

• Control Panel - LED3 DISPLAY
• Warranty - 1 Year / 1000 Hours* (Terms apply)
• Model EAN - 6040001600025
